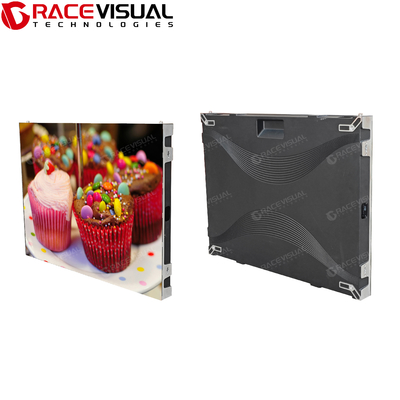

Grace Visual BUD Pro LED Display System 2x3 Module Front Service

The BUD Pro Series by Grace Visual Technologies offers a cutting-edge LED display solution featuring exceptional visual performance, energy efficiency, and easy front-access maintenance. Designed with versatility and reliability in mind, it's an ideal choice for various indoor applications such as retail environments, corporate spaces, event venues, and premium digital signage installations.

• Multiple Pixel Pitch Options
  Available in pixel pitches ranging from 1.25mm to 2.5mm, catering to high-resolution, close-viewing applications.
• Superior Visual Performance
  • High contrast ratio of 4000:1 for deep blacks and vivid images
  • 16-bit grayscale ensures accurate color reproduction and rich detail
  • Ultra-high refresh rate of 7680Hz, ideal for live broadcasts and motion-intensive content
  • Brightness ≥500nits, suitable for a wide range of indoor lighting conditions
  • Ultra-wide viewing angle of 160° horizontal / 140° vertical, ensuring visibility from multiple angles

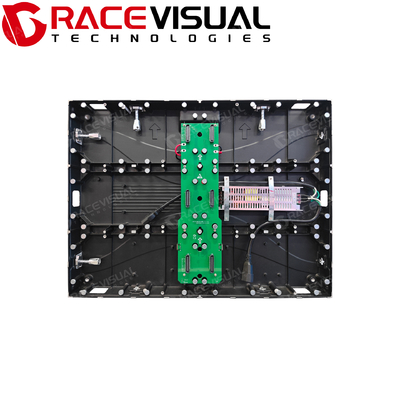

• Front Access Design for Easy Installation & Maintenance
  • Fully front-serviceable modules simplify wall-mount installations and post-installation servicing
  • Cableless module design reduces complexity and improves reliability

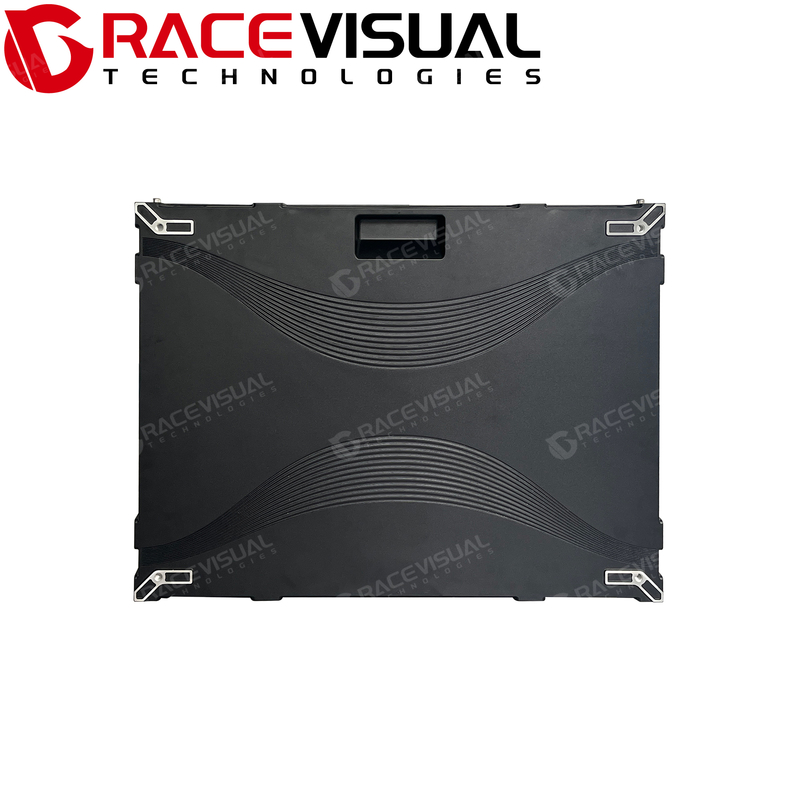

• Lightweight & Seamless Panel Design
  • Made with die-casting aluminum, each panel weighs only 7.2kg (15.87lbs)
  • Standard panel size: 640×480×85mm (25.2"×18.9"×3.3"), with a 4:3 aspect ratio
  • Seamless splicing and modular flexibility
• Universal Module Compatibility

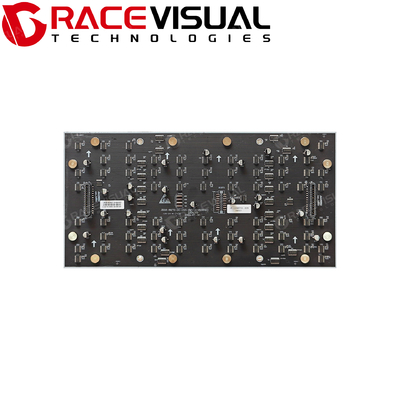

  LED modules are designed to be interchangeable (left/right), reducing inventory variety and simplifying configuration
• Energy-Efficient and Long-Lasting
  • Avg. power consumption: 64W/panel, Max: 192W/panel
  • Expected lifespan: 100,000 hours, ensuring long-term value

• Retail Stores - Captivate shoppers with vibrant advertising and promotional displays
• Corporate Environments - Ideal for boardrooms, lobbies, and executive presentations
• Events & Exhibitions - Perfect for dynamic backdrops, real-time displays, and live content
• High-End Digital Signage - Airports, malls, transportation hubs, and other public information systems

• LED Type: SMD1010 / SMD1212 / SMD1515 / SMD2121 (varies by model)
• Pixel Density: Up to 640,000 pixels/m²
• Panel Resolution (BUDP-1.2 example): 512×384 pixels
• Front/Rear Protection: IP40/IP21
• Certifications: CCC, CE, ETL, RoHS
• Operating Temperature & Humidity: -10°C to 60°C / 10% to 60% RH
